• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Not available with (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Flasher, heavy duty light emitting diode (LED)
• Glass, Solar-Ray light-tinted, all windows
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

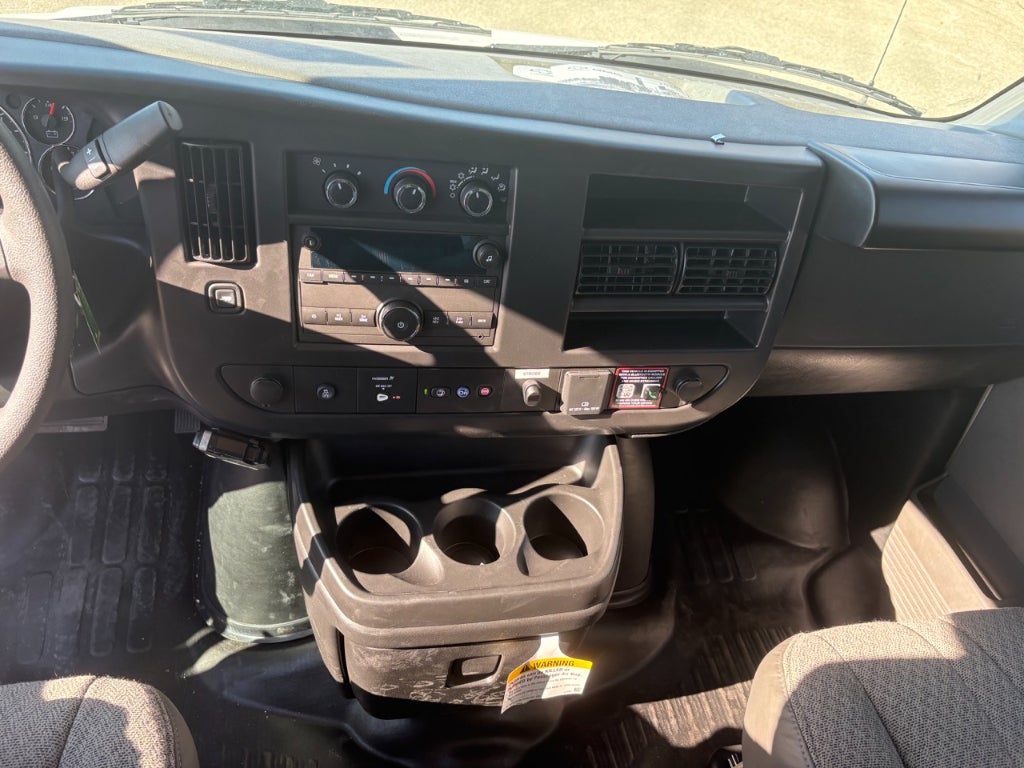

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers

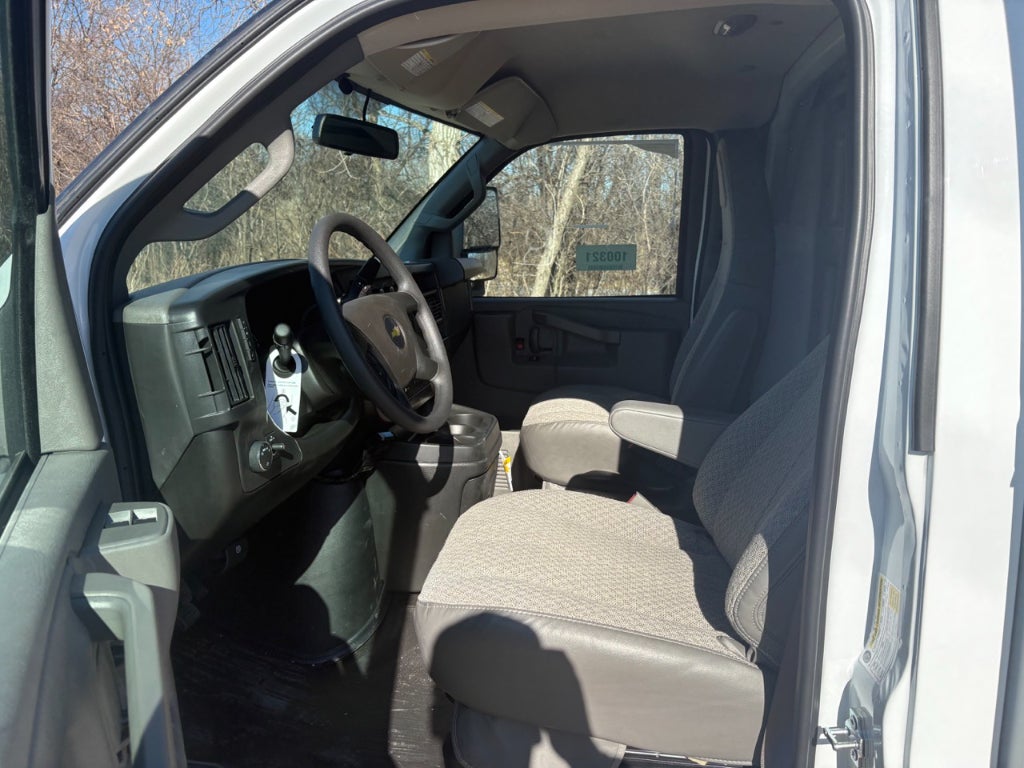

• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Air conditioning, single-zone manual
• Heater and defogger with front and side window defoggers
• Mirror, inside rearview includes Rear Vision Camera display (Included and only available with (UVC) Rear Vision Camera.)
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded

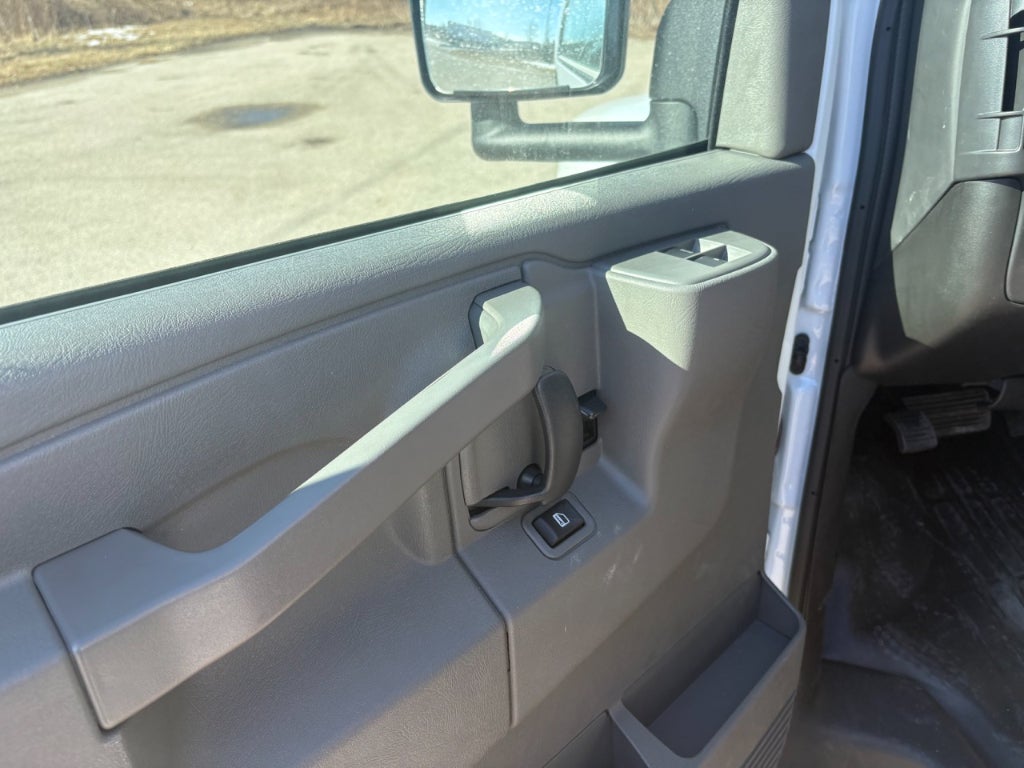

• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Airbags, frontal, front driver and right front passenger includes passenger-side frontal airbag deactivation switch (Included with (ZX2) driver and right-front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain side-impact (Included with (C4M) 9900 lb. (4490 kg) GVWR. Available on (JFF) 10100 lb. (4581 kg) GVWR, (C7N) 12300 lb. (5579 kg) GVWR, and (C7I) 14200 lb. (6441 kg) GVWR. Not available with (B3D) School Bus Package, (ANC) Shuttle Bus Package, (YF1) RV Package, and (9T7) right-hand door delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Currently not available to order. Not available with (YF1) RV Package or (YF2) Ambulance Package. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (Requires (UE1) OnStar. OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2889
• Curb Weight - Rear (lbs): 1437
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 15000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139
• Length, Overall (in): 247.15
• Width, Max w/o mirrors (in): - TBD -
• Height, Overall (in): 83.95
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.45
• Ground to Top of Frame (in): 31.45
• Frame Width, Rear (in): 42.00
• Ground Clearance, Front (in): 9.05
• Ground Clearance, Rear (in): 8.40
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Summary

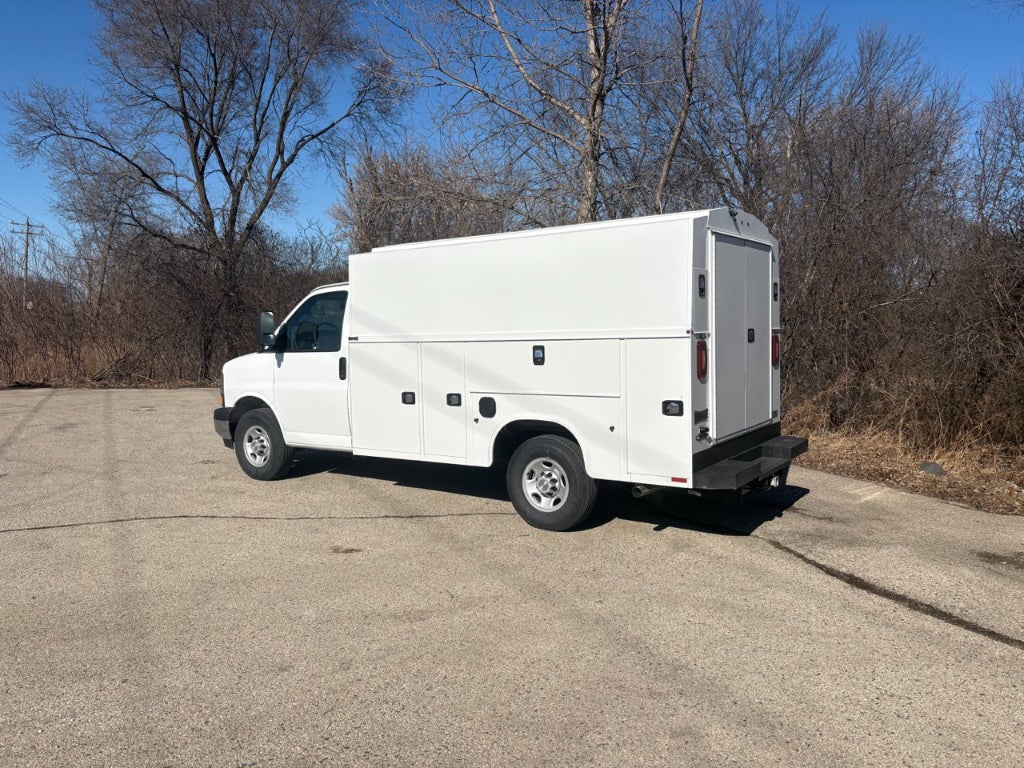

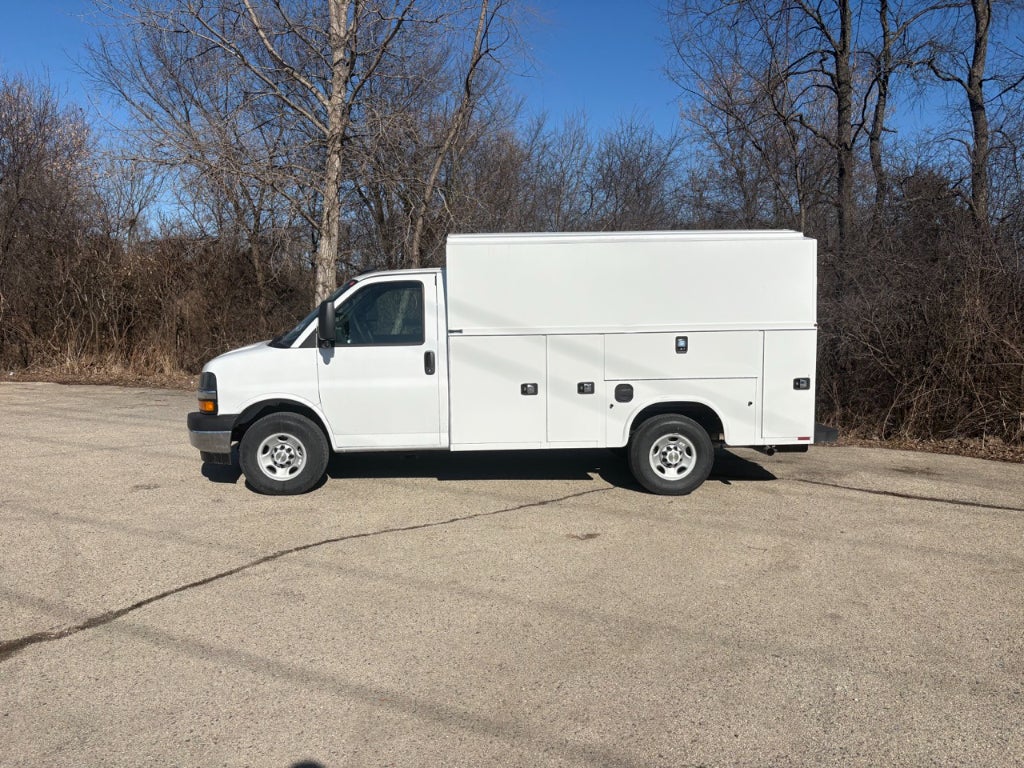

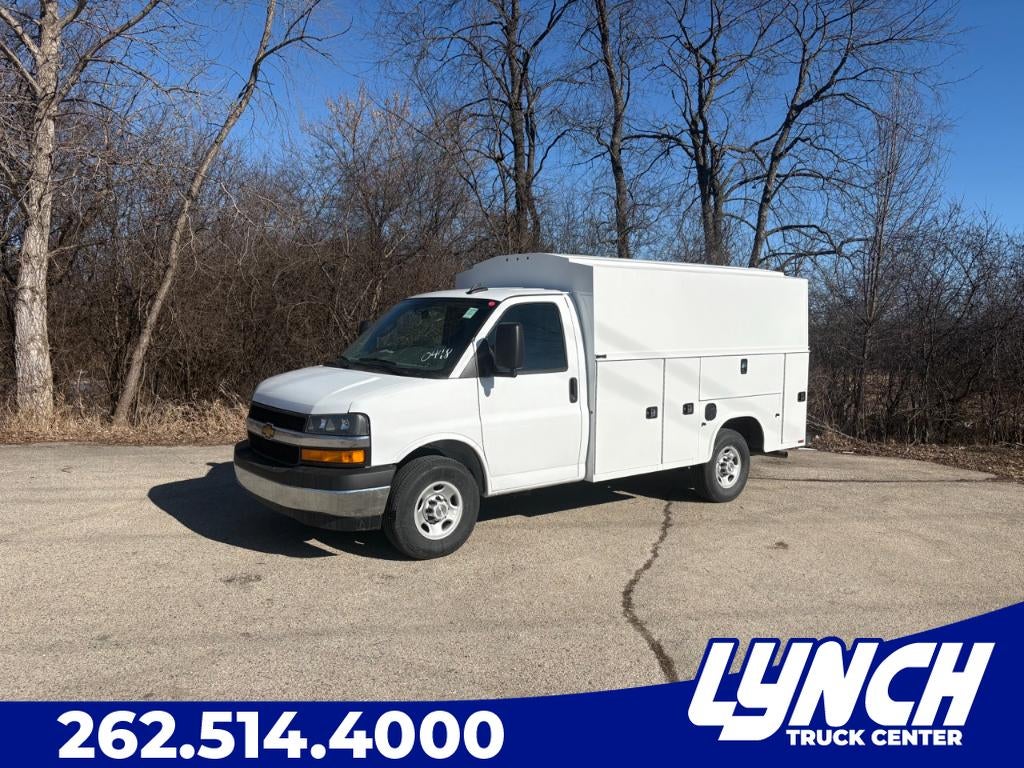

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
